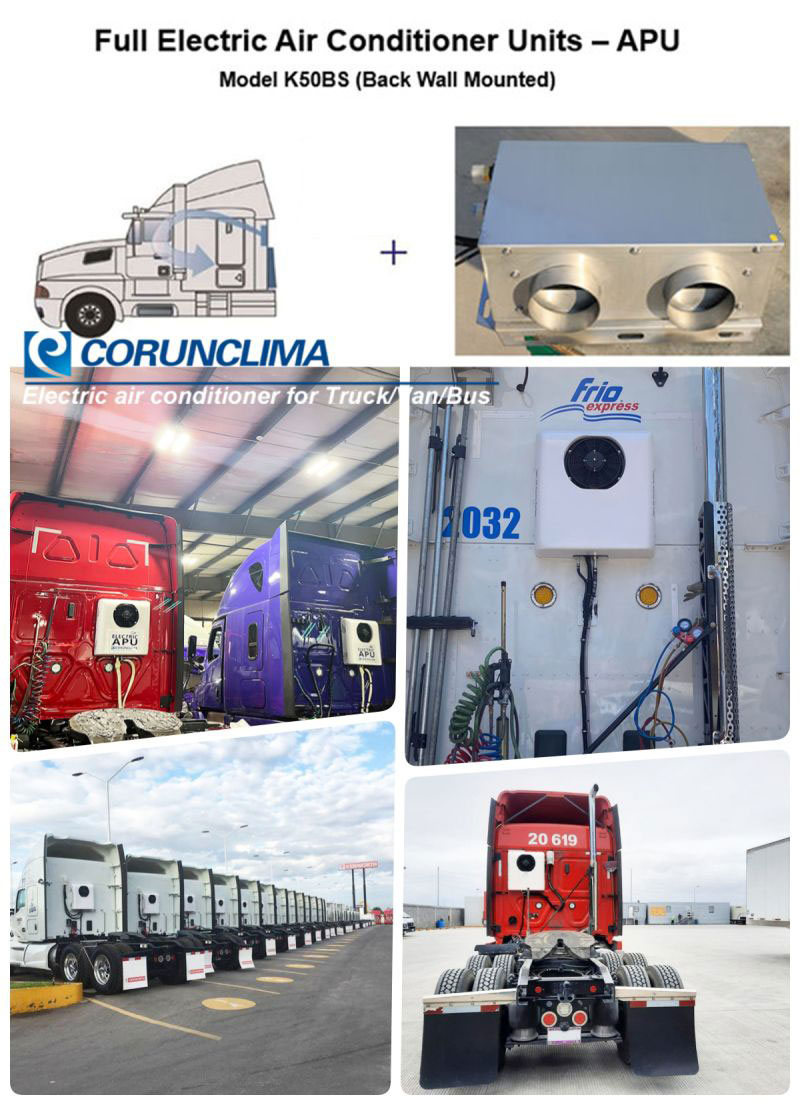

Battery Driven Back Wall Mounted Air Conditioner For Truck
- Corunclima
- China
- 2-4weeks
- 500set/Month
Battery driven Back Wall Mounted Air conditioner for fleeting-truck
Cooling up to 9500Btu and 19800Btu.
Runs on 4 or 6 deep cycle type AGM batteries, idle 8-10hours.
Environmentally friendly, Meet EPA SmartWay standard and anti-idling laws
Main features of Battery Driven Back Wall Mounted Air Conditioner For Truck
1.Durability(life up to 10 years), even in consruction and mine. Reduce cost and gain benefit.
2.Stroner cooling capacity(up to 9500Btu and 19800Btu) and stronger air flow(up to 400cbf and 550cbf).
3.Easy installation. The compressor built in the condensor.
4.More safety. When the battery voltage drops to 10.5V (12V A/C) and 21.5V (24V A/C), the A/C will shut down automatically. The engine also can re-start at all times.
5.Environmental protection.Zero emissions and no pollution.
6.Low noise. When truck parking, the engine relys on battery to work, which ensures the driver have a good rest.
7.We have warehouse in South Africa, Middle East, Mexico, America, UAE and Southeast Asia etc.
Local delivery, local service, and local parts supply.
Specification / Technical data
Model No. | K20BS2 | T20B | T60B |
Back-wall mounted | Roof-top Mounted | Roof-top Mounted | |
Cooling Capacity | 9500Btu 2.8kw | 9500Btu 2.8kw | 19800Btu 5.8kw |
Voltage available | DC12V, DC24V | DC12V, DC24V | DC12V, DC24V |
Compressor Type | DC Electric scroll compressor. Brushless motor | DC Electric scroll compressor. Brushless motor | DC Electric scroll compressor. Brushless motor |
Working Current | 48A (12V), 35A(24V) | 48A (12V), 35A(24V) | 85A (12V), 70A(24V) |
Max. Current | 72A(12V), 55A(24V) | 72A(12V), 55A(24V) | 155A (12V), 115A(24V) |
Refrigerant Gas | R134A | R134A | R134A |
Cooling air | 400cfb / 720m3/h | 400cfb / 720m3/h | 550cbf / 900m3/h |
Condenser fan | 11’ one pc | 11’ one pc | 12’ one pc |
Size | Condenser: L:752mm, W: 676mm, H:182mm Evaporator: L:582mm, W: 310mm, H:138mm | L:856mm, W: 743mm, H:180mm | L:1263mm, W:1040mm, H:198mm |
Weight | Condenser: 32KG(70.5LBS) Evaporator: 8.5KG(18.7LBS) | 39Kg(86LBS) | 55Kg(121LBS) |
Air vent Qty | 4pcs | 5pcs | 8pcs |
