Farming Agricultural Machinery Air Conditioner
- Corunclima
- Henan, China
- 2-4weeks
- 500set/Month

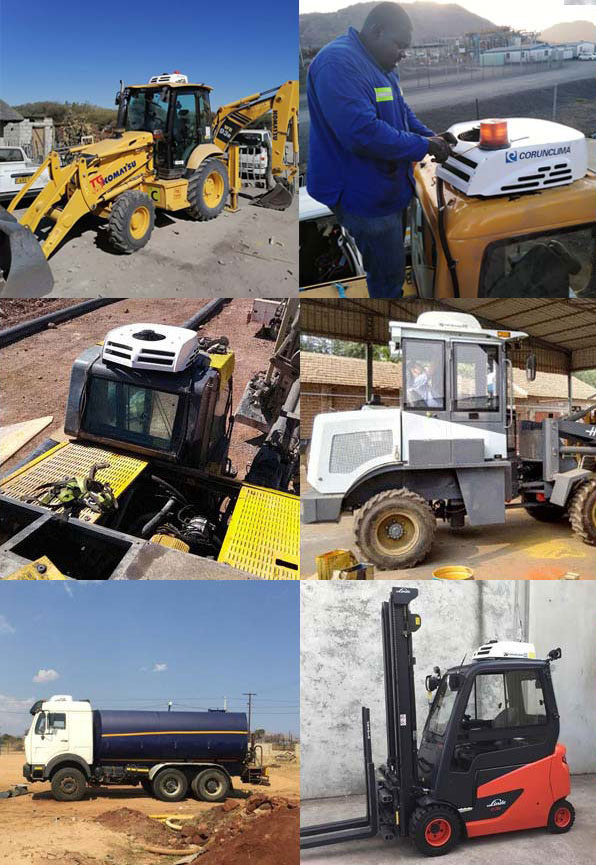

Heavy-duty design for off-road vehicles, Battery driven, no need install compressor on engine.
The battery air conditioning systems are compact design, heavy-duty, Monoblock and roof top mounted. b
Run by DC12V DC24V original batteries or auxiliary battery bank.
Main features
1. Durable. suitable for various mine environments,agricultural vehicles.
2. The sleeper cab A/C is eco-friendly because of zero CO2 emission.
3. The user can complete installation in less time. Two worker will take about 30 minutes for it.
4. More cooling capacity and more air flow. Cooling capacity up to 9500Btu and 19800Btu. Cooling air flow up to 400cbf and 550cbf.
5. Special Vibration reduction, tough standards Wire harness, and reliable parts.
6. Lower maintenance for most Key parts of Top brand.
Specification / Technical data
Model No. | T20B | T60B |
Cooling Capacity | 9500Btu 2.8kw | 19800Btu 5.8kw |
Voltage available | DC12V, DC24V | DC12V, DC24V |
Compressor Type | DC Electric scroll compressor. Brushless motor | DC Electric scroll compressor. Brushless motor |
Working Current | 48A (12V), 35A(24V) | 85A (12V), 70A(24V) |
Max. Current | 72A(12V), 55A(24V) | 155A (12V), 115A(24V) |
Refrigerant Gas | R134A | R134A |
Cooling air | 400cfb / 720m3/h | 550cbf / 900m3/h |
Condenser fan | 11’ one pc | 12’ one pc |
Roof top size | L:856mm, W: 743mm, H:180mm | L:1263mm, W:1040mm, H:198mm |
Roof top weight | 39Kg(86LBS) | 55Kg(121LBS) |
Air vent Qty | 5pcs | 8pcs |
